Waterproof HD 4X 1080P Network Mini Home CCTV Security IP PTZ Speed Dome Network Camera CCTV System

Waterproof HD 4X 1080P Network Mini Home CCTV Security IP PTZ Speed Dome Network Camera CCTV System

el MTSO2MD
Sensor 1/2.8Sony IMX307 CMOS Sensor + SSC335 1080P Starlight
Frame Rate Main Stream: 1080P (1920*1080P0P@30Fps) 720P (1080*720P@30Fps)
Sub Stream: D1 (704*576@30fps)
Optics Zoom 4X  2.8mm-12mm Optical Zoom Lens
Auto Focus Auto / Semi-automatic / Manual
Min Illumination Color: 0.0001Lux BW: 0.0001Lux
Wide dynamic Support Digital
Manual speed Pan (0.1°-300°/s)
Tilt (0.1°-200°/s)
Rotation Pan Continuously 360° Tilt 0-90°
Auto-flip With Auto-Flip
Scan 355° Programmable 4 Scan
Pattern 4 Patterns and each Record Time is not less than 180s
Tour 4 Tour speed & park time of presets can be set
Idlle Run Tour / Preset / Pattern / Scan can be set
Power up Run Tour / Preset / Pattern / Scan can be set
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Video Compression H.264/H.265/H.265+
Privacy Mask Support
Motion Detection Support
Network 1 RJ45 10M/100M Base-TX Ethernet
Protocols Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Security Measures User Authentication (ID and PW)
Onvif Onvif 2.6 Version
Other function Support WEB OSD Live Video Transmission Motion Detection and IO Alarm and Center Reminder and Image Linkage Support JPEG Capture; Perfect SDK
Mobile monitoring

Support Multiple Mobile Monitoring (iOS Android)
POE

Optional
Installation Ceilling/Wall /Pendant installation  (Optional)

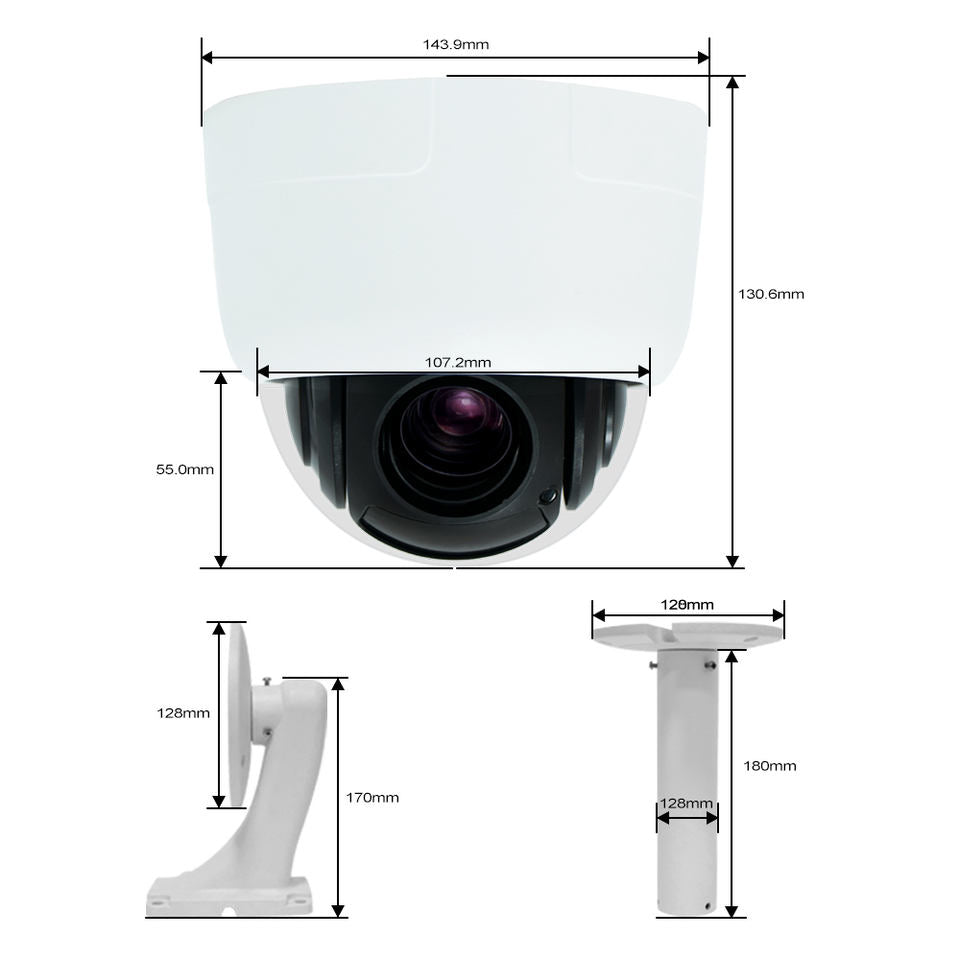

Size Product Size (143.9×130.6mm) Packing Size (180*220*230mm/pc)
Protection Level IP66 Standard (Indoor & Outdoor Dome)
TVS Lightning Protection Surge Protection and Voltage Transient Protection
