Britures Technology Limited

Surround 360 WiFi Camera

Surround 360 Panoramic WiFi Camera with V380 Pro

2MP/3MP/5MP

Model:	B3PA200
App:	V380 Pro
System structure:	Embedded Linux system, ARM chip structure
Chip	AK3918E
Resolution:	2.0MP
Sensor Resolution:	1/2.9"SC2232H、GC2063
Lens	Fisheye lens (1.35±3%mm)

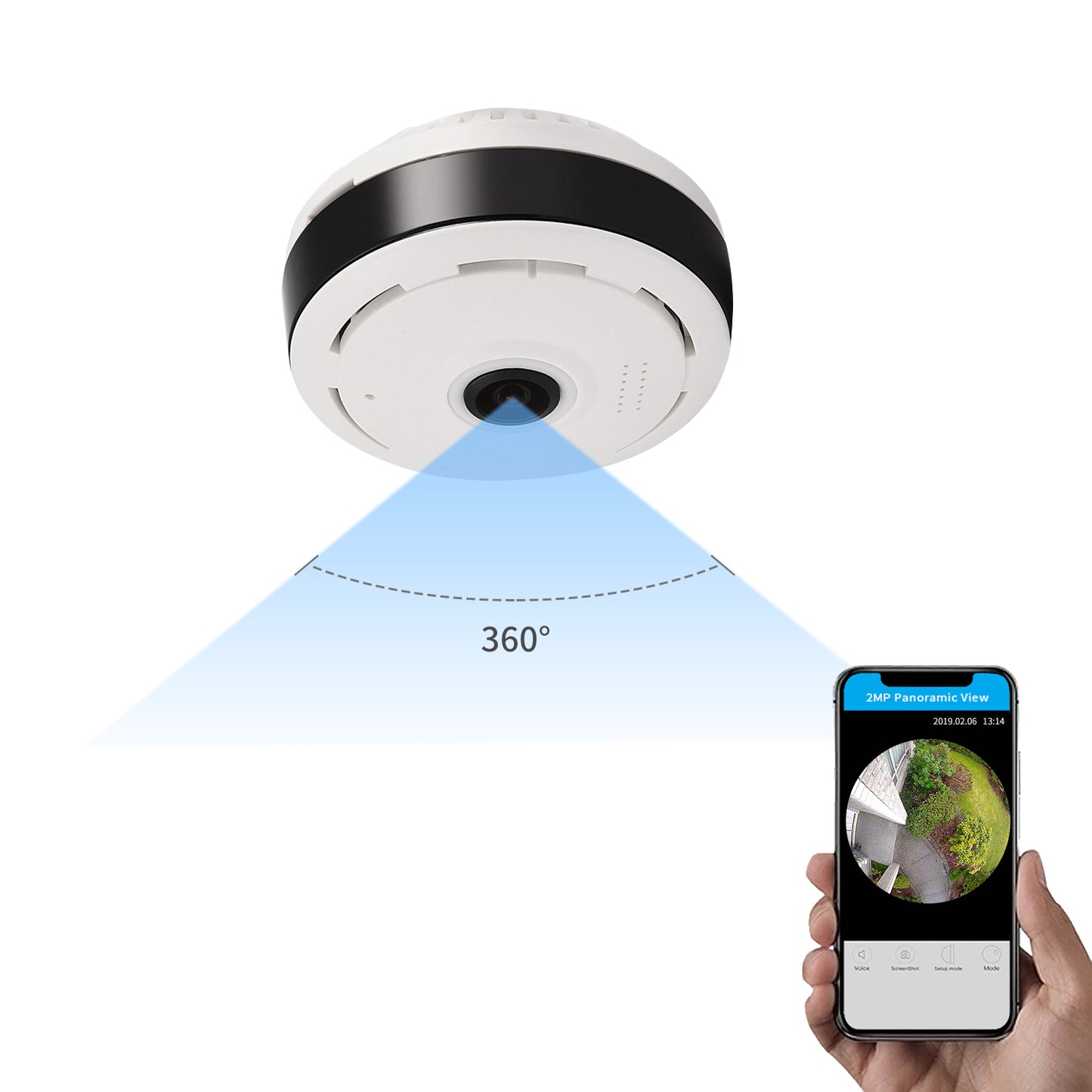

Lens view angle:	360°
View angle:	Horizontal: 185°/ Vertical:185°
Video compression standard:	H.265/20FPS
Video format:	PAL
Minimum illumination:	0.01Lux@（F2.0，VGC ON),O.Luxwith IR
Electronic shutter:	Auto
Backlight compensation:	Support
Noise reduction:	2D、3D
Led quantity:	3PCS infrared LED

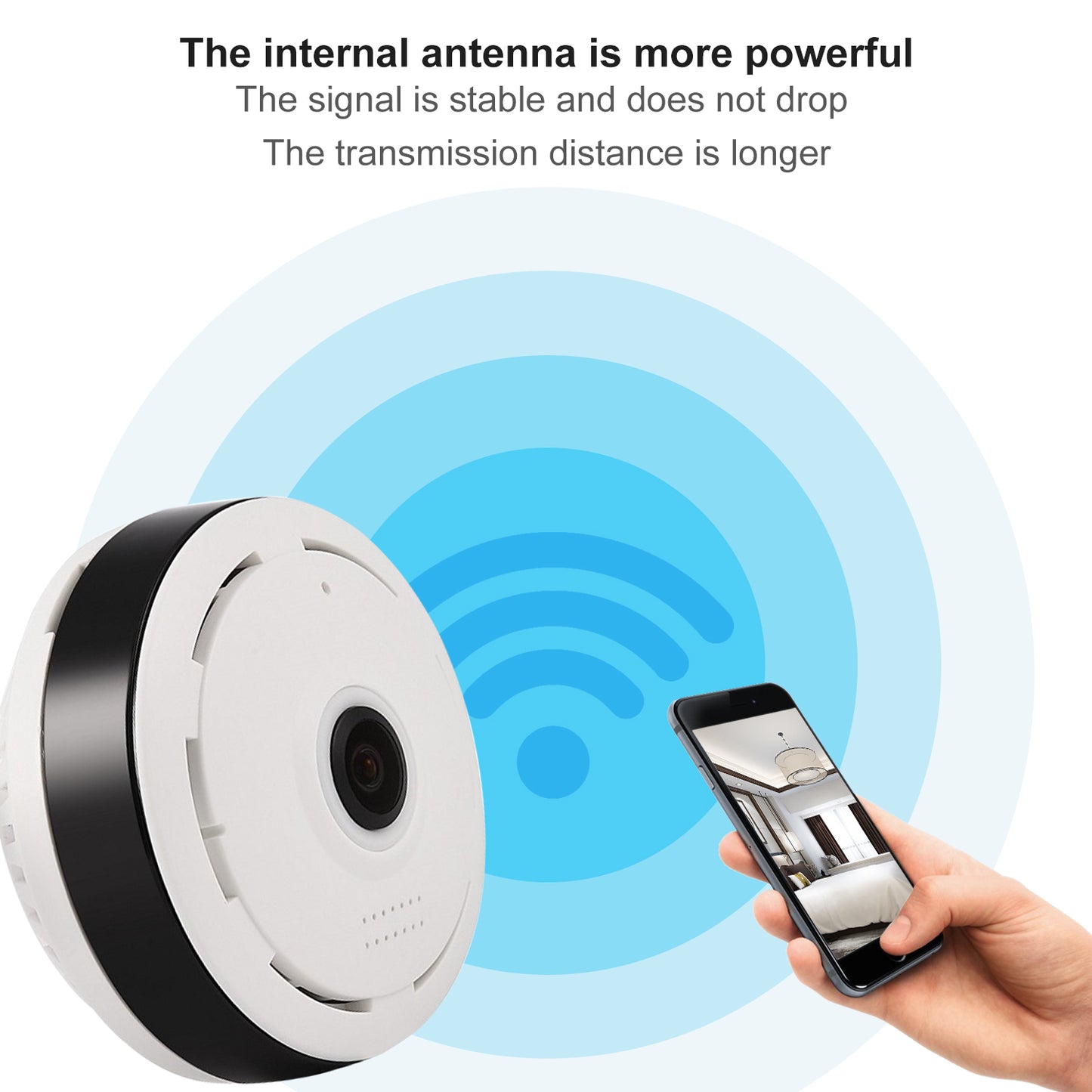

Network:	WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol).
Network connection:	WIFI, AP hotspot
Night vision:	IR-CUT switch Automatic，about 5-8meters (It varies from environment)
Audio	Built-in microphone and speaker, support real-time two-way audio transmission.ADPCM audio compression standard, self-adapt to code stream
Network protocol:	TCP/IP、UDP、RTSP、HTTP DDNS、DHCP、FTP、NTP
Alarm	①Motion detection and picture push ②AI Human intrusion Detection(optional)
ONVIF	Support ONVIF
Storage:	TF Card（Max 128G）；Cloud storage /Cloud disk (optional)
Power input:	5V/1.6A
Work environment:	Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH
