Britures Technology Limited
【B3PD200】Fisheye lens Bulb camera -V380 Pro
【B3PD200】Fisheye lens Bulb camera -V380 Pro

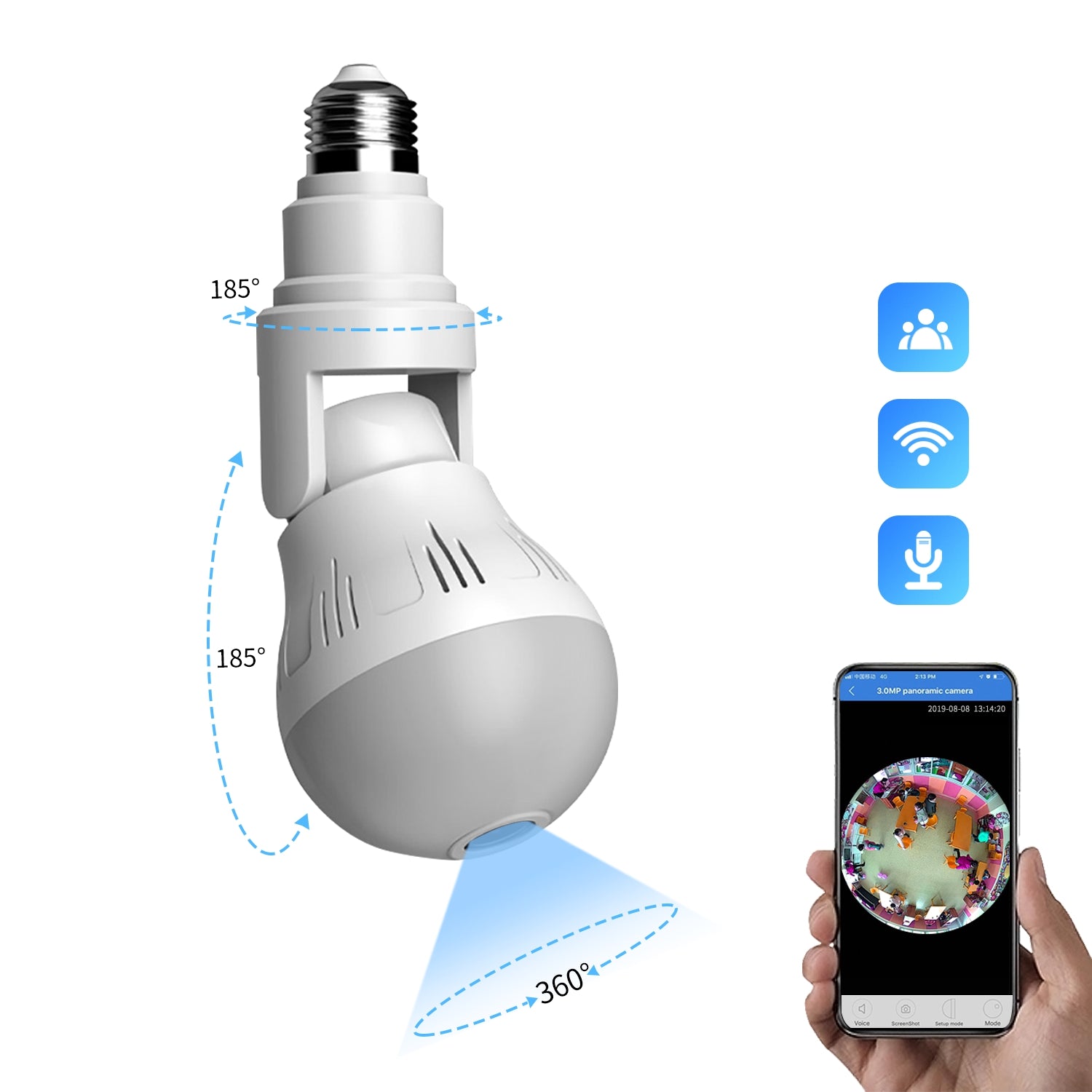

Panoramic Camera with Fisheye lens -V380 Pro
2MP/3MP/5MP
| Model: | B3PD200 | ||
| APP: | V380 Pro | ||
| System structure: | Embedded Linux system, ARM chip structure | ||
| Chip: | AK3918E | ||
| Resolution: | 2.0MP | ||
| Sensor Resolution: | 1/2.9"COMS SC2232H/GC2063 | ||
| Lens | Fisheye lens (1.35±3%mm) | ||
| Lens view angle | 360° | ||
| View angle: | Horizontal: 185°/ Vertical:185° | ||
| Video compression standard: | H.265/20FPS | ||
| Video format: | PAL | ||
| Minimum illumination: | 0.01Lux@(F2.0,VGC ON),O.Luxwith IR | ||
| Electronic shutter: | Auto | ||
| Backlight compensation: | Support | ||
| Noise reduction: | 2D、3D | ||
| LED quantity: | 3pcs white LED + 3PCS infrared LED | ||
| Network: | WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol). | ||
| Network connection: | WIFI ,AP Hotspot | ||
| Night vision |
IR-CUT switch Automatic,about 5-8meters (It varies from environment) White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto (In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision automatically , it can intelligently detected human body, and Turn ON/OFF the White light intelligently ) |
||
| Audio: | Built-in microphone and speaker, support two-way audio and real-time transmission. ADPCM audio compression standard, self-adapt to code stream |
||
| Network protocol: | TCP/IP、UDP、HTTP DDNS、DHCP、FTP、NTP |
||
| Alarm: | ①Motion detection and picture push ②AI Human intrusion Detection (optional) |
||
| ONVIF | Support ONVIF | ||
| Storage: | TF Card(Max 128G);Cloud storage /Cloud disk (optional) | ||

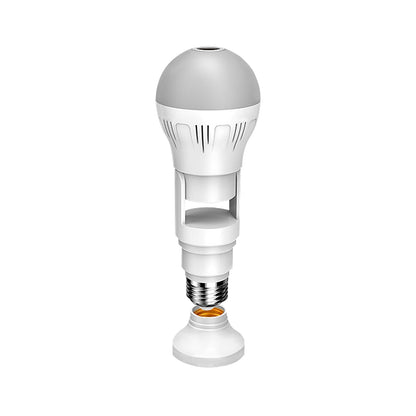

| Connection port: | Standard E27 base | ||
| Power input: | 110~220V | ||
| Work environment: | Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH | ||
